    Dispersion and Spectra

    Flashcards for topic Dispersion and Spectra

    Intermediate38 cardsGeneral

    Preview Cards

    Card 1

    Front

    Compare the three types of emission spectra (continuous, line, and band) and explain their atomic/molecular origins.

    Back

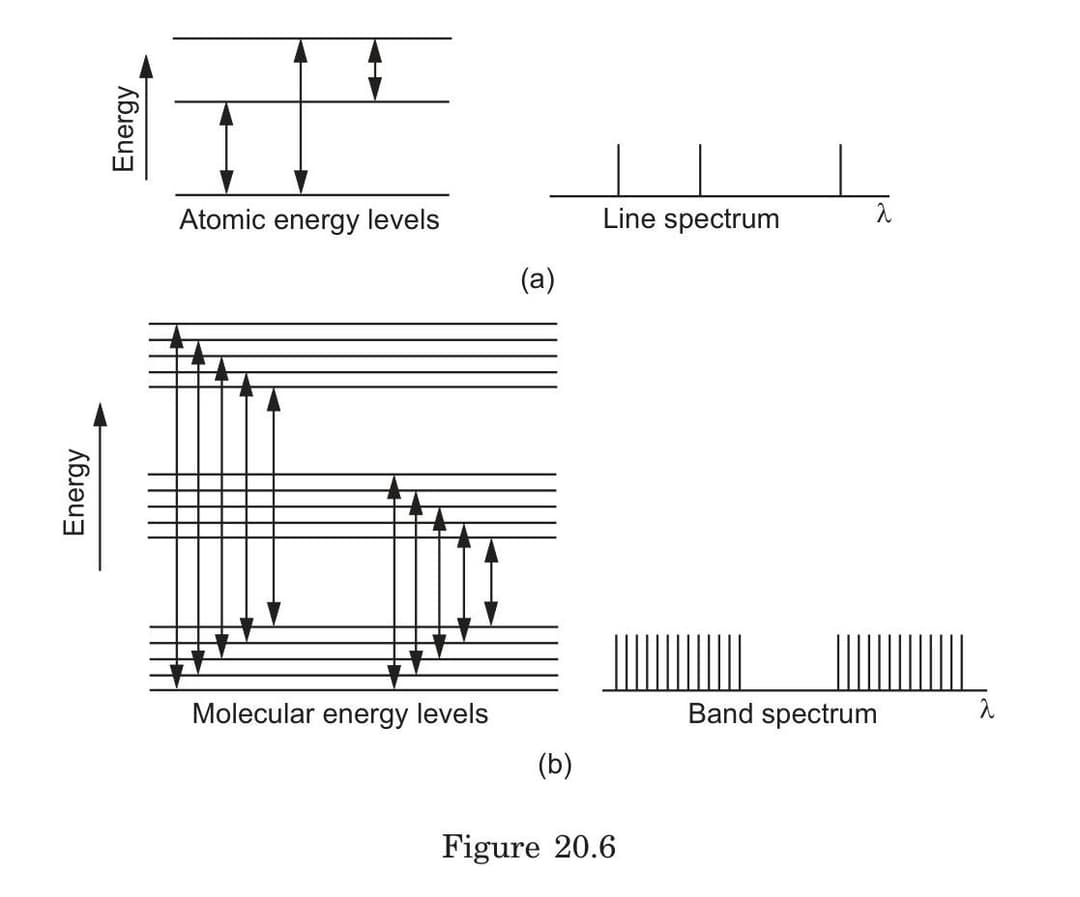

    Continuous Emission Spectrum:

    • Appearance: Continuous distribution of colors without gaps
    • Origin: Objects with closely packed energy levels (solids, liquids, dense gases)
    • Examples: Incandescent bulbs, candle flames, heated solids
    • Physics: Thermal excitation causes transitions between numerous overlapping energy levels

    Line Emission Spectrum:

    • Appearance: Discrete bright lines on dark background
    • Origin: Individual atoms making specific quantum transitions between energy levels
    • Examples: Sodium vapor lamps (589.0nm & 589.6nm yellow lines)
    • Physics: Excited atoms emit photons of precise energies when electrons transition between discrete energy states

    Band Emission Spectrum:

    • Appearance: Groups of closely spaced lines appearing as bands
    • Origin: Molecules with closely spaced vibrational and rotational energy sublevels
    • Examples: Molecular gases under electrical discharge
    • Physics: Transitions between energy level bunches that are widely separated from other bunches
    Card 2

    Front

    How does dispersion manifest in optical systems and what specific problems does it cause in imaging applications?

    Back

    Manifestations of Dispersion:

    1. Wavelength-dependent refraction causing separation of colors
    2. Different focal points for different wavelengths
    3. Color fringing at boundaries of images

    Problems in Imaging Applications:

    1. Chromatic Aberration:

      • Longitudinal: Different wavelengths focus at different distances
      • Lateral: Different wavelengths focus at different heights from optical axis
    2. Color Fringing: Colored edges around high-contrast boundaries

    3. Reduced Resolution: Blurring due to overlapping color focal points

    4. Reduced Contrast: Especially in systems requiring precise focus

    5. Spectral Artifacts: False colors or missing wavelength information

    Solutions include achromatic lenses (crown+flint combinations), apochromatic designs (correcting for three wavelengths), and reflective optics (mirrors that avoid dispersion entirely).

    Card 3

    Front

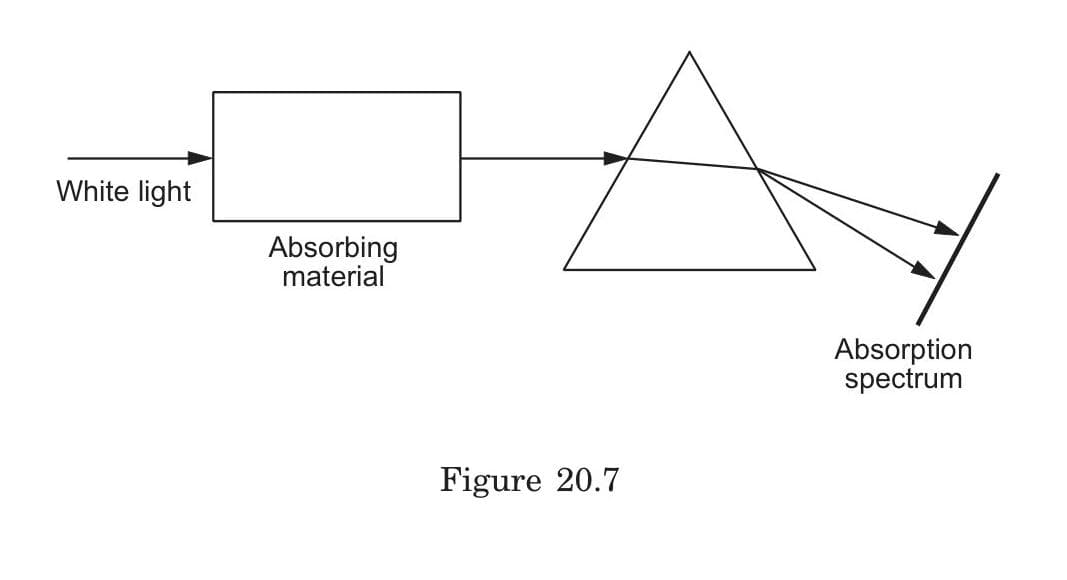

    Compare and contrast line absorption spectrum and band absorption spectrum in terms of appearance, origin, and scientific applications.

    Back

    Line Absorption Spectrum:

    • Appearance: Sharp, discrete dark lines on bright continuous background
    • Origin: Atomic transitions where specific wavelengths are absorbed when electrons move from lower to higher energy states
    • Examples: Fraunhofer lines in solar spectrum, stellar spectra
    • Applications:
      • Identifying chemical elements in astronomical objects
      • Measuring relative velocities via Doppler shifts
      • Determining stellar compositions and temperatures

    Band Absorption Spectrum:

    • Appearance: Dark bands (groups of closely spaced lines) on bright continuous background
    • Origin: Molecular transitions involving vibrational and rotational energy states
    • Examples: Absorption by hydrogen gas at moderate temperature, organic compounds in solution
    • Applications:
      • Identifying molecular compounds in samples
      • Atmospheric analysis and pollution monitoring
      • Biochemical analysis of organic solutions
      • Pharmaceutical quality control

    Key Distinction: Line spectra reveal atomic composition while band spectra reveal molecular structure and bonding characteristics.

    Card 4

    Front

    Explain the optical principles behind producing "dispersion without average deviation" and how this concept is applied in achromatic lens design.

    Back

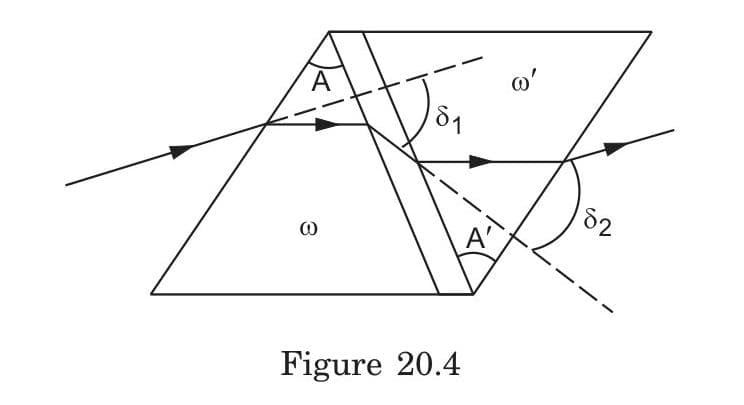

    Principles of Dispersion Without Average Deviation:

    1. When two prisms with angles AAA and A′A'A′ are arranged in reverse orientation:

      • Net deviation: δ=(μy−1)A−(μy′−1)A′\delta = (\mu_y - 1)A - (\mu'_y - 1)A'δ=(μy​−1)A−(μy′​−1)A′
      • Angular dispersion: δv−δr=(μv−μr)A−(μv′−μr′)A′\delta_v - \delta_r = (\mu_v - \mu_r)A - (\mu'_v - \mu'_r)A'δv​−δr​=(μv​−μr​)A−(μv′​−μr′​)A′
    2. For zero average deviation: (μy−1)A=(μy′−1)A′(\mu_y - 1)A = (\mu'_y - 1)A'(μy​−1)A=(μy′​−1)A′

    3. For non-zero dispersion: (μv−μr)A≠(μv′−μr′)A′(\mu_v - \mu_r)A ≠ (\mu'_v - \mu'_r)A'(μv​−μr​)A=(μv′​−μr′​)A′

    Application in Achromatic Lens Design:

    1. Combine crown glass (low dispersion) and flint glass (high dispersion) lenses
    2. Make one lens converging and one diverging
    3. Choose powers to satisfy: Pcrown+Pflint=PdesiredP_{\text{crown}} + P_{\text{flint}} = P_{\text{desired}}Pcrown​+Pflint​=Pdesired​
    4. Choose materials and powers so dispersion of one cancels the other
    5. Result: Two wavelengths focus at exactly the same point

    This principle allows lenses to form images without color fringing, critical for microscopes, telescopes, and precision optical instruments.

    Card 5

    Front

    What is the relationship between refractive index and wavelength for transparent materials, and how does this vary among different optical materials?

    Back

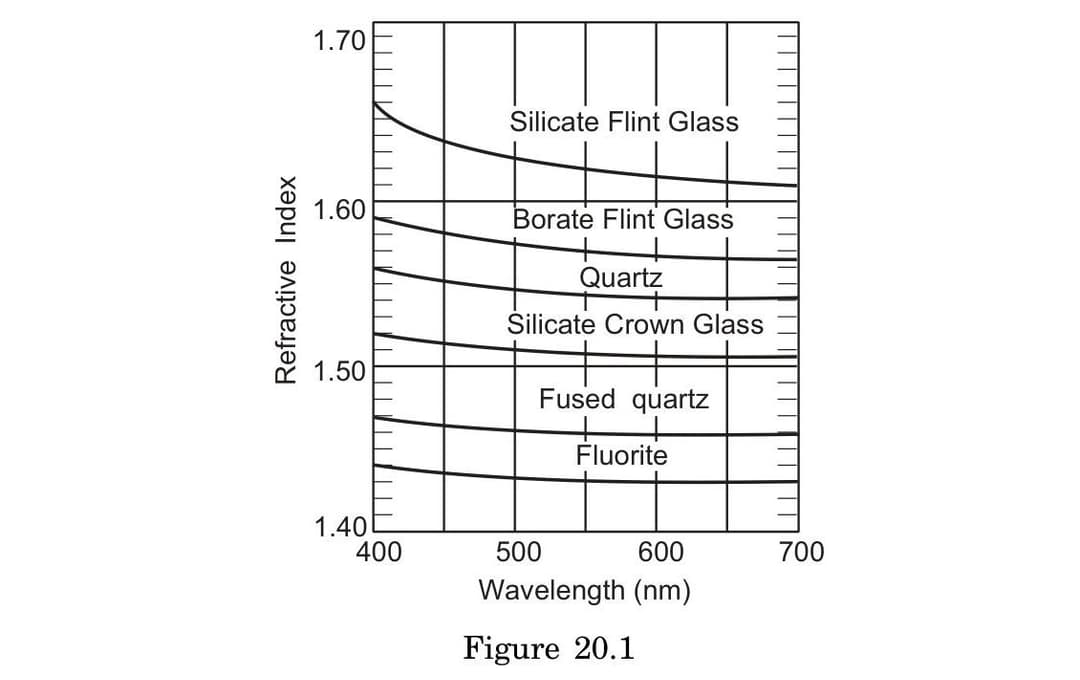

    • Refractive index decreases as wavelength increases (approximately follows Cauchy's equation: μ = μ₀ + A/λ²)
    • Materials with higher average refractive indices (like Silicate Flint Glass) show steeper curves, meaning greater dispersion
    • Materials with lower average refractive indices (like Fluorite) show flatter curves, meaning less dispersion
    • Violet light (shorter wavelength, ~400nm) experiences higher refraction than red light (longer wavelength, ~700nm)

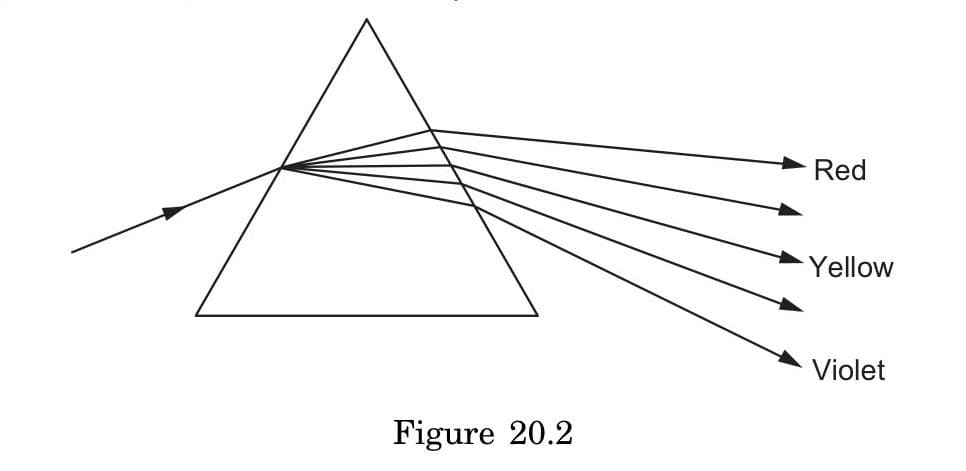

    • This relationship explains why prisms separate white light into a spectrum of colors

    Example: Silicate Flint Glass has a refractive index of ~1.66 at 400nm and ~1.61 at 700nm, while Fluorite ranges from ~1.44 to ~1.43 across the same range.

    Card image
    Card 6

    Front

    How does the principle of pure spectrum formation differ from impure spectrum formation, and what specific conditions must be met for purity?

    Back

    Pure Spectrum Requirements:

    • Incident light beam must be parallel before reaching the dispersing element
    • All rays of a particular wavelength must be collected at one specific point
    • Narrow slit width to prevent multiple overlapping spectra

    Impure Spectrum Causes:

    • Wide slit causing separate overlapping spectra from different points
    • Non-parallel incident light causing wavelength mixing
    • Improper focusing allowing wavelengths to spread across the focal plane

    Key Conditions for Purity:

    1. Slit must lie precisely in the focal plane of the collimating lens
    2. Collimated rays must be perfectly parallel when striking the dispersing element
    3. The focusing lens must have proper focal length to collect parallel rays of each wavelength
    4. Proper optical alignment throughout the system

    A pure spectrum shows distinct color boundaries with no overlap, while an impure spectrum shows diffused color impressions with gradual transitions.

    Card image
    Card 7

    Front

    What is the physical basis for the different focal positions of red and violet light after passing through a dispersing element and focusing lens, and how does this relate to the refractive index equation?

    Back

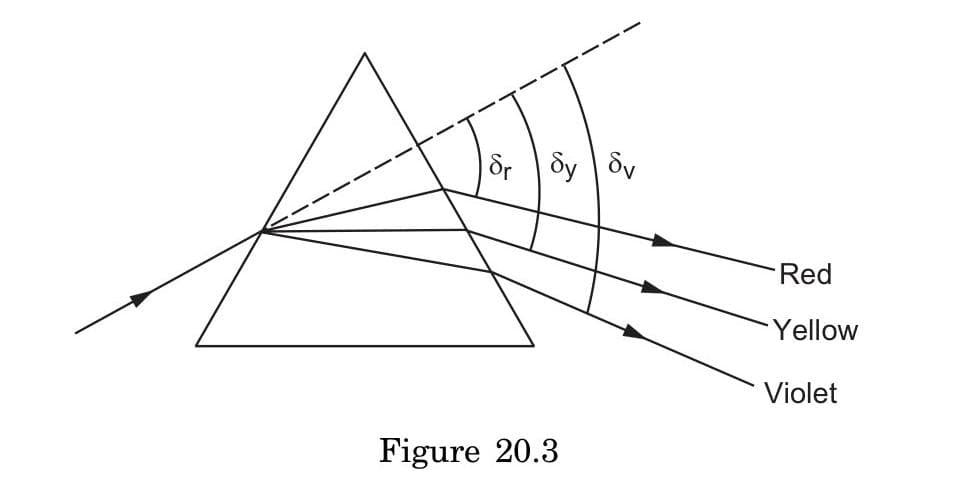

    The different focal positions result from wavelength-dependent refraction, explained by:

    1. Refractive Index Variation: The refractive index (μ) varies with wavelength according to Cauchy's equation: μ = μ₀ + A/λ² where A is Cauchy's constant and λ is wavelength

    2. Dispersion Mechanism:

      • Violet light (shorter wavelength) has higher refractive index than red light (longer wavelength)
      • Higher refractive index causes greater deviation when passing through the dispersing element
      • This creates angular separation between different wavelengths
    3. Focal Position Effect:

      • The focusing lens collects parallel rays of each wavelength at different points in its focal plane
      • Violet light focuses closer to the lens than red light due to its greater deviation
      • The separation between focal points depends on the dispersive power of the material

    The dispersive power (ω) quantifies this effect: ω = (μᵥ - μᵣ)/(μy - 1), where μᵥ, μᵣ, and μy are the refractive indices for violet, red, and yellow light respectively.

    This wavelength-dependent focusing forms the basis for both spectrum analysis and chromatic aberration in optical systems.

    Card image
    Card 8

    Front

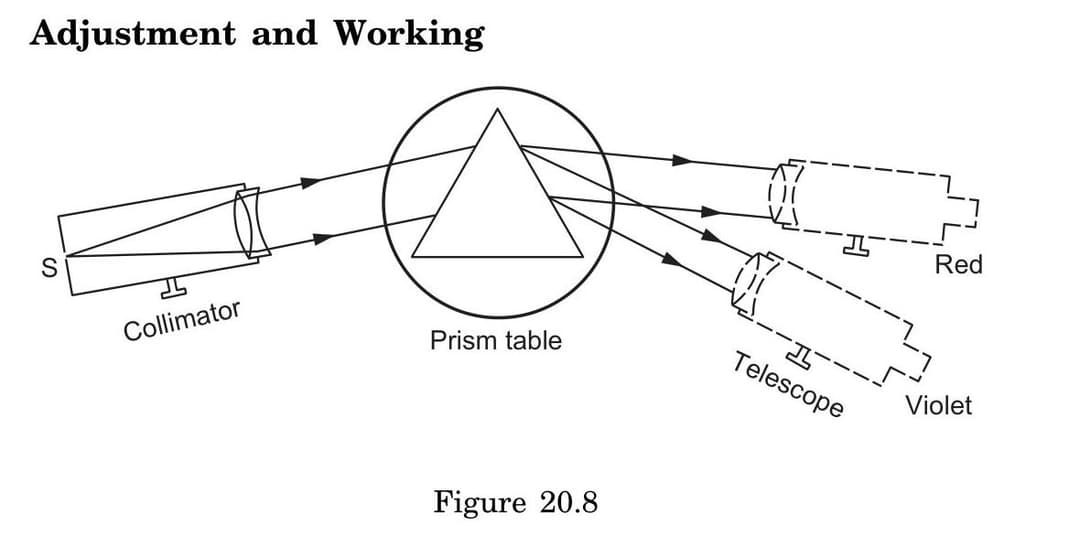

    What are the essential components of a spectrometer setup for optical measurements, and what is the function of each component?

    Back

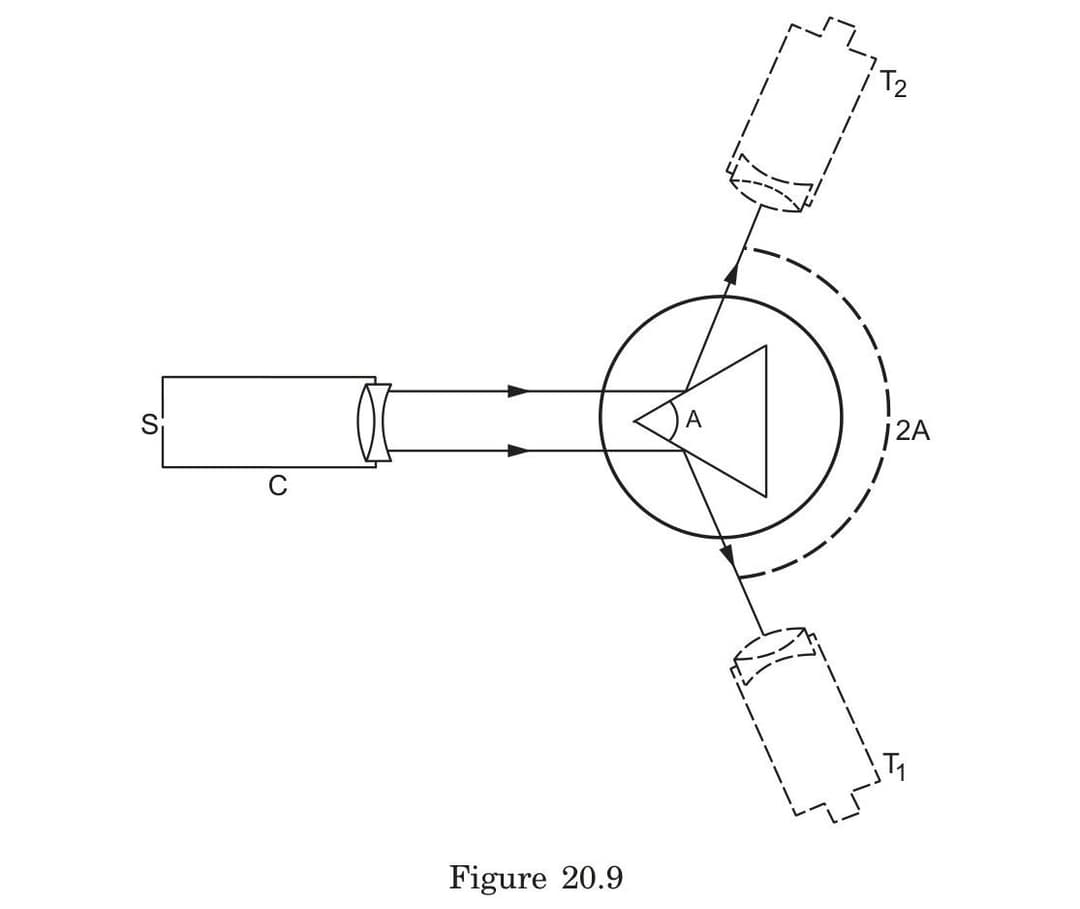

    A spectrometer for optical measurements consists of three essential components:

    1. Collimator (C):

      • Contains an adjustable slit (S) and an achromatic converging lens
      • Function: Produces a parallel beam of light from the source
      • The slit-to-lens distance is adjusted so the slit lies at the lens's focal point
    2. Prism Table:

      • Horizontal circular platform that can rotate about a vertical axis
      • Function: Holds the dispersing element (prism, grating)
      • Includes graduated circular scale to measure angles of rotation
    3. Telescope (T):

      • Contains objective lens and eyepiece in an astronomical arrangement
      • Function: Receives and focuses the light after reflection/refraction
      • Can rotate around the same vertical axis as the prism table
      • Has vernier scale to precisely measure angular positions

    The entire system must be properly leveled using adjustment screws before measurements.

    Card image
    Card 9

    Front

    How does a spectrometer produce a pure spectrum through its optical arrangement and what are the critical design considerations?

    Back

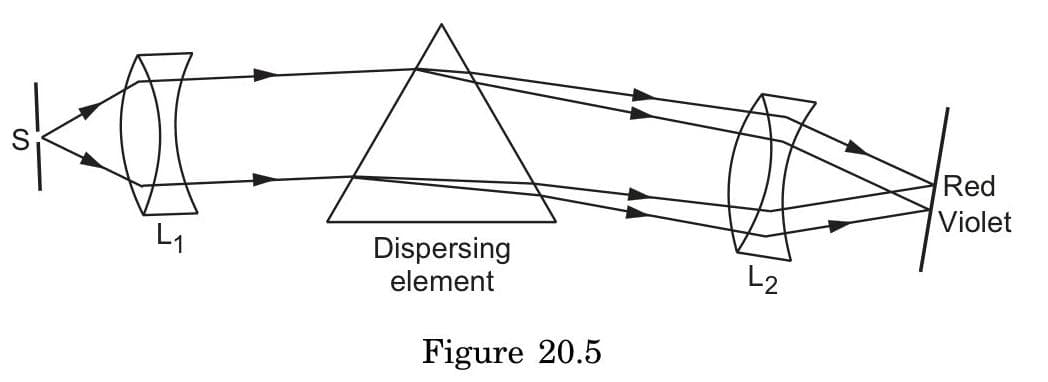

    A spectrometer produces a pure spectrum through a precisely designed optical pathway with these critical components:

    Essential Components:

    1. Collimator Assembly:
      • Narrow entrance slit: Acts as a thin pencil of light source
      • Achromatic converging lens: Transforms divergent light into parallel rays
    2. Dispersing Element (mounted on rotatable prism table):
      • Prism or diffraction grating: Separates light into component wavelengths
      • Must maintain ray parallelism within each wavelength group
    3. Telescope Assembly:
      • Focusing lens (second achromatic lens): Collects dispersed parallel rays
      • Focal plane: Where separated wavelengths form distinct images

    Critical Design Considerations:

    • Each wavelength must occupy one specific spatial position in the spectrum
    • Rays of identical wavelength must remain parallel after dispersion
    • No overlapping of different wavelengths in the final image
    • Proper alignment and achromatic lens quality to prevent chromatic aberration
    • Rotatable mounting for the dispersing element to select specific wavelengths

    Without this precise arrangement, an impure spectrum would form with diffused, overlapping color impressions that prevent accurate spectral analysis.

    Card image
    Card 10

    Front

    How does the angle of minimum deviation in a prism work, and what specific adjustments and principles are critical for its accurate measurement using a spectrometer?

    Back

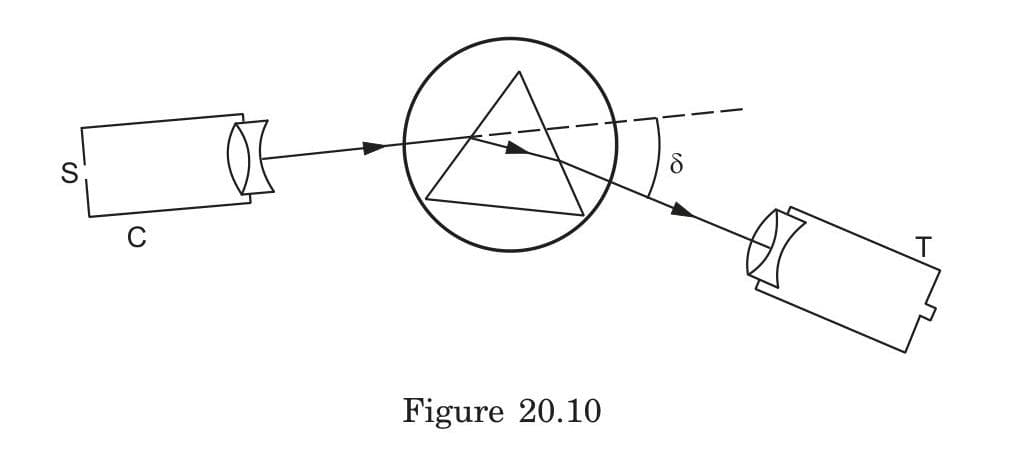

    Minimum Deviation Principle

    • Definition: The specific orientation of a prism where light deviation reaches its minimum value (δₘᵢₙ)
    • Key characteristics at minimum deviation:
      • Light passes symmetrically through the prism
      • Refracted ray inside the prism runs parallel to the base
      • Refractive index calculation: μ = sin[(A + δₘᵢₙ)/2] / sin(A/2) where A is the prism angle

    Critical Spectrometer Adjustments

    1. Leveling: Ensure collimator axis, telescope axis, and prism table are all horizontal
    2. Collimator adjustment: Position slit at collimator lens focal point to generate parallel light beam
    3. Telescope adjustment: Set to infinity focus for parallel rays
    4. Prism positioning: Place with refracting edge toward collimator

    Measurement Procedure

    1. Initially locate refracted image by rotating telescope
    2. Iterative process:
      • Gradually move telescope toward direct position while adjusting prism orientation
      • Find precise position where further prism rotation in either direction makes image disappear or deviation increase
      • This position marks the minimum deviation
    3. Calculate the angle between direct ray position and minimum deviation position

    Application

    This technique provides the most accurate method for determining refractive indices of prismatic materials across different wavelengths of light.

    Card image

    Showing 10 of 38 cards. Add this deck to your collection to see all cards.
